Name: 5″ x 7″ Off Road LED Headlight – Combination High &amp; Low Beam | 3900 Lumens
Brand: Trux
SKU: TLED-H52
Price: 57.74 USD
Availability: InStock

Description

INSTALLATION:

Please refer to Installation PDF/Video

VIEW/DOWNLOAD:

TLED-H52 Technical Data Headlight Troubleshooting Guide

TRUX RESOURCES:

Trux LED Lighting Solutions Catalog Warranty Policy

Additional information

Style	Rectangular
Size	5" x 7"
Sold	Individually
Compliance	No
Bulb Type	LED

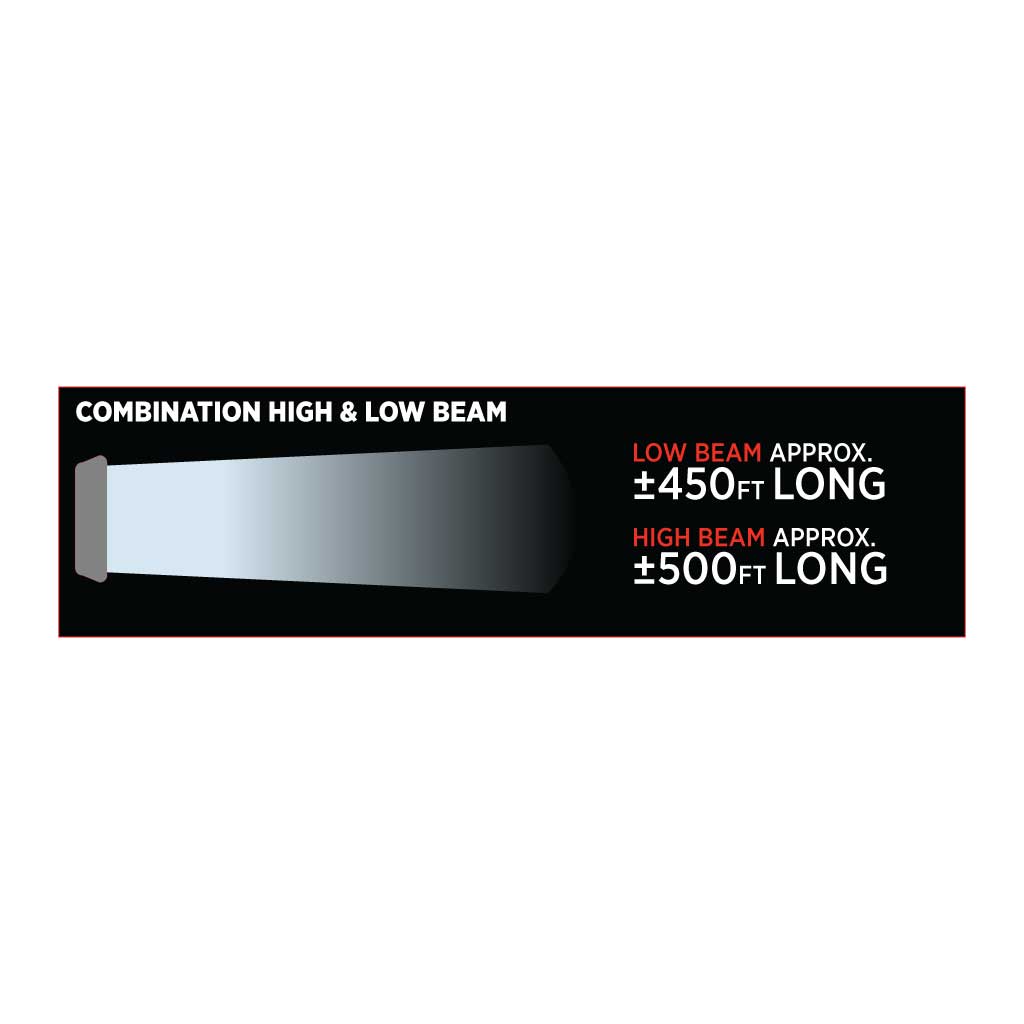

Function	Combination High & Low Beam
LED Power	High: 39 Watts, Low: 21 Watts
Raw Lumens	High: 3900 Lumens, Low: 2100 Lumens
Effective Lumens	High: 1900 Lumens, Low: 1000 Lumens
Operating Voltage	9-32 Volts
Current Draw @ 12 Volts	High: 2.28 Amps, Low: 1.23 Amps
Diodes	13 Diodes
Interior Color	Chrome
Lens Color	Clear
Lens Material	Polycarbonate
Color Temperature	6000K
Housing Material	Aluminum Die Cast
Retrofit	6052, 6053, H6054, HD6054, HP6054
Waterproof Rating	IP67 Rating

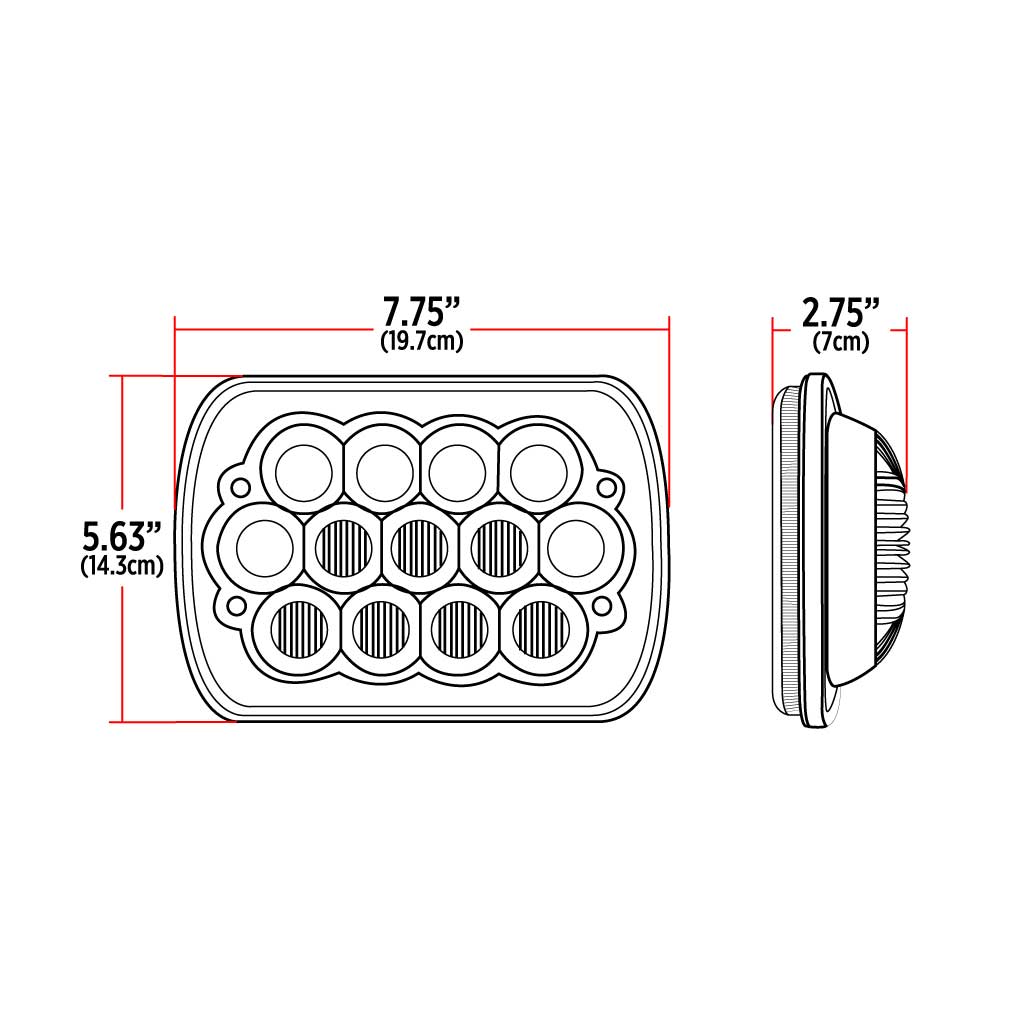

Product Dimensions	7.75"L x 2.75"W x 5.63"H
Package Dimensions	8.5"L x 4"W x 6"H
Inner Box QTY	1 PC
Warranty	1 Year Warranty
