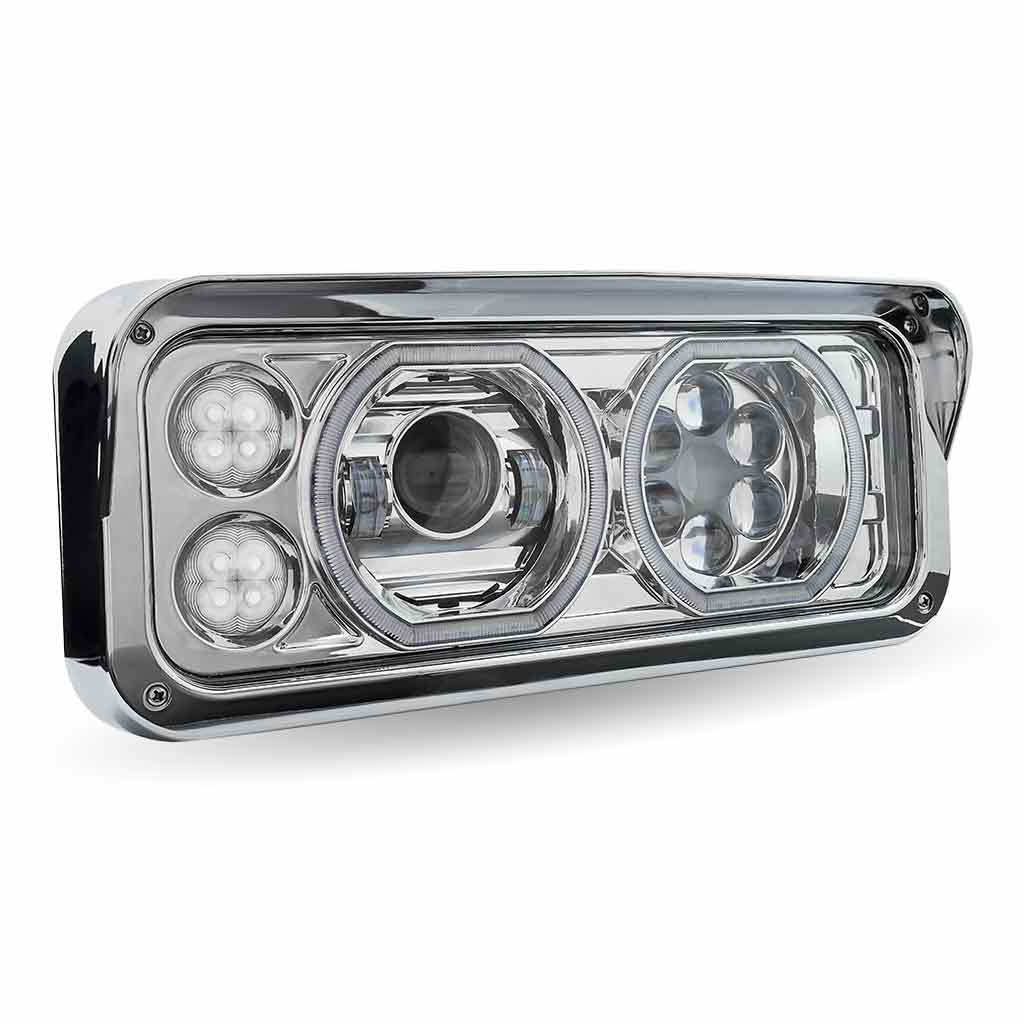

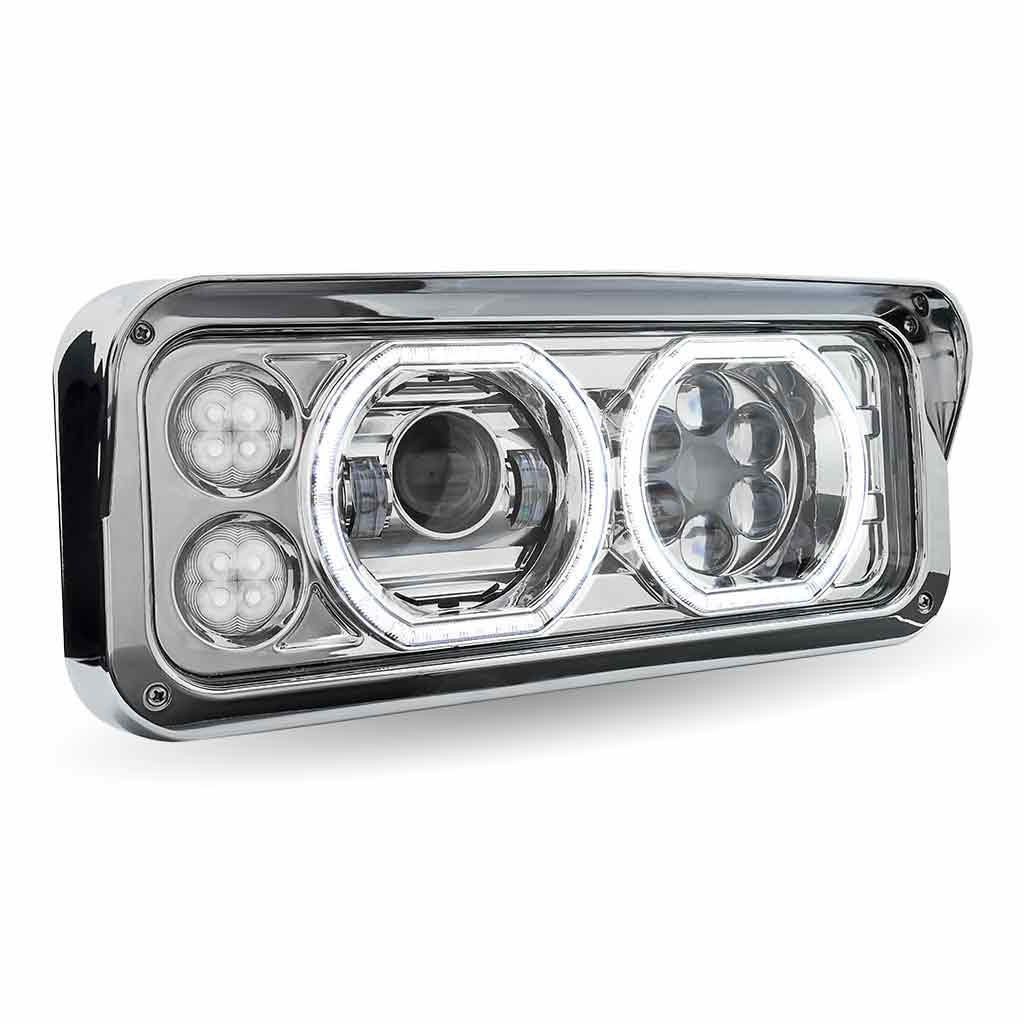

Name: Universal LED Projector Headlight Assembly with Glow Position Halos &amp; Marker LEDs – Chrome (Passenger Side)
Brand: Trux
SKU: TLED-H121
Price: 437.50 USD
Availability: InStock

Description

INSTALLATION:

Please refer to Installation PDF/Video

Additional information

Weight	9.48 lbs
Dimensions	18.8 × 9.9 × 9.85 in
Make	Freightliner, Kenworth, Peterbilt, Western Star
Model	357, 365, 378, 379, 4800 Series, 4900 Series, 6900 Series, Classic, T600, T800, W900
Manufacture Year	1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
Style	Freightliner, Kenworth, Peterbilt, Western Star
Size	Double 4" x 6"
Sold	Individually
Compliance	CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type	LED Projector

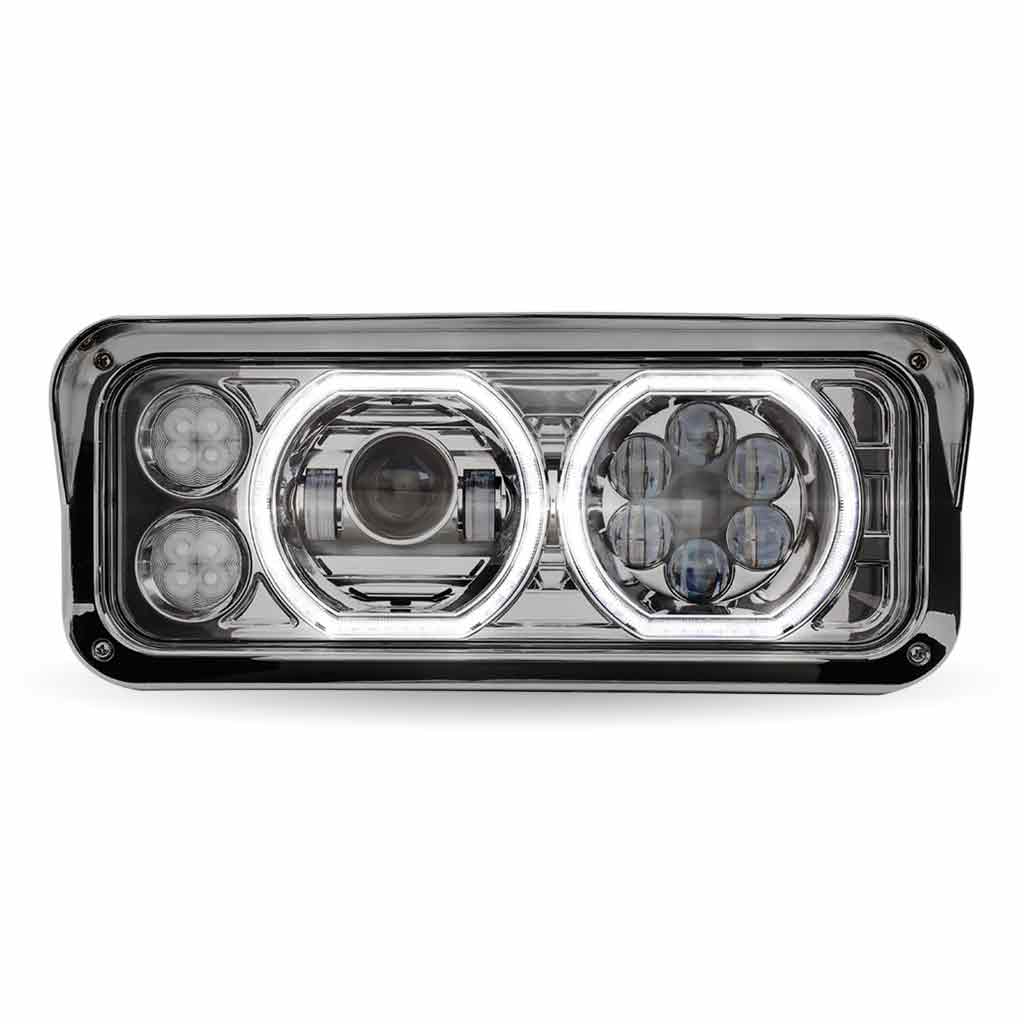

Function 1	Combination High & Low Beam

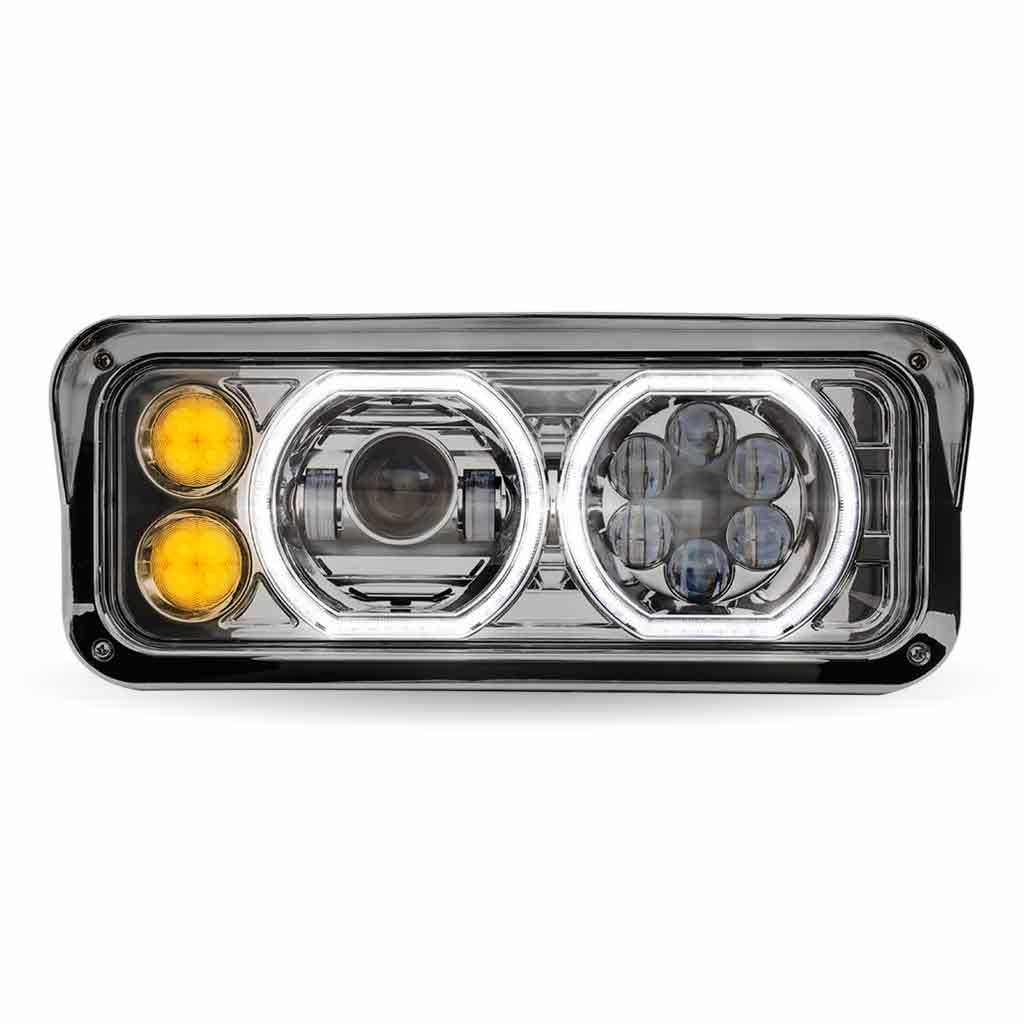

Function 2	Marker Leds Glow Position
LED Power	High: 19.2 Watts, Low: 17.3 Watts
Raw Lumens	High: 2100 Lumens, Low: 1400 Lumens
Effective Lumens	High: 1225 Lumens, Low: 830 Lumens
Operating Voltage	9-30 Volts (DRL Compatible)
Function 2 Amperage	0.44 Amps @ 12 Volts
DRL Amperage (Watts/Amps)	0.16 Amps
Diodes	High: 7 Diodes, Low: 3 Diodes
Interior Color	Chrome
Lens Color	Clear
Lens Material	Polycarbonate
Housing Material	Polypropylene
Waterproof Rating	IP66 Rating

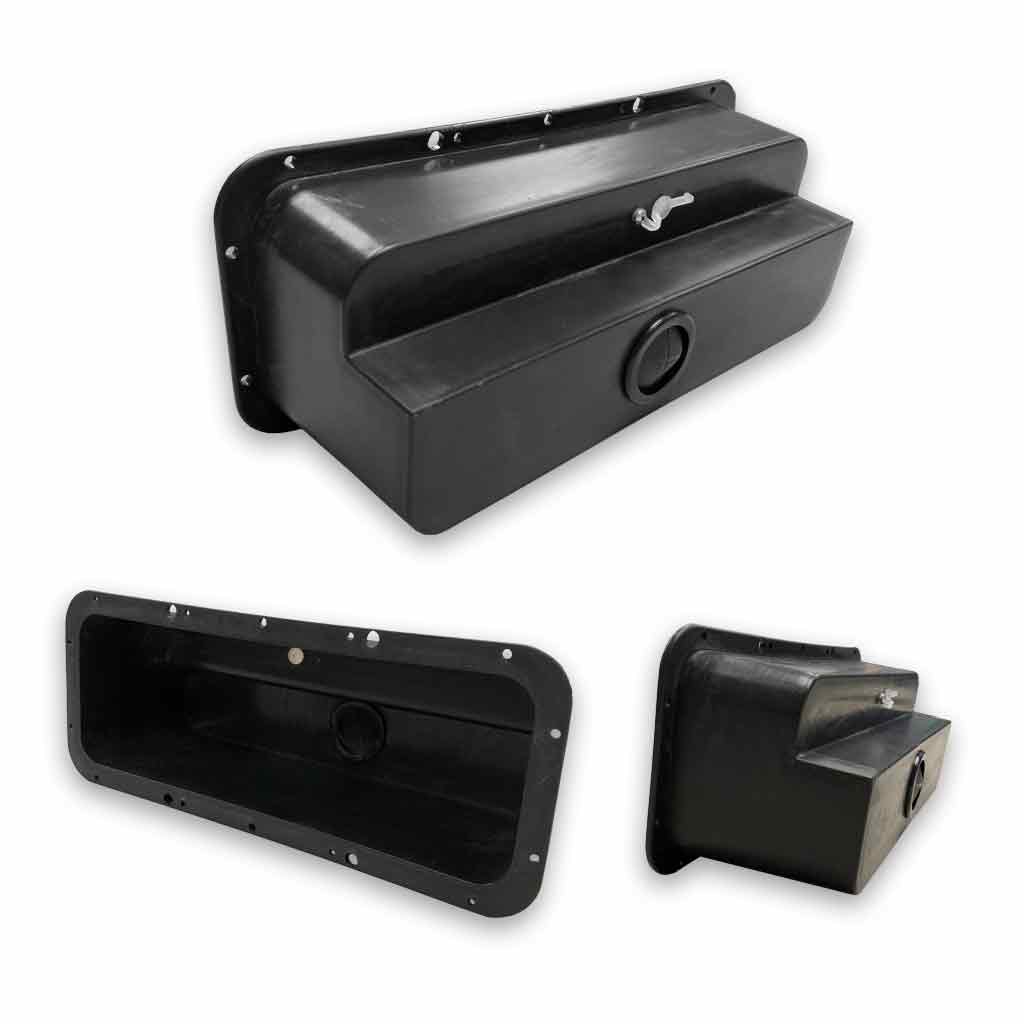

What's Included	Housing Bucket Hardware
Package Dimensions	18.8"L x 9.5"W x 9.8"H
Package Weight	9.6 lbs
Inner Box QTY	1 PC
Outer Box Qty	6 PCS
Warranty	3 Year Warranty
Current Draw @ 12.8 Volts	High: 1.50 Amps, Low: 1.25 Amps
