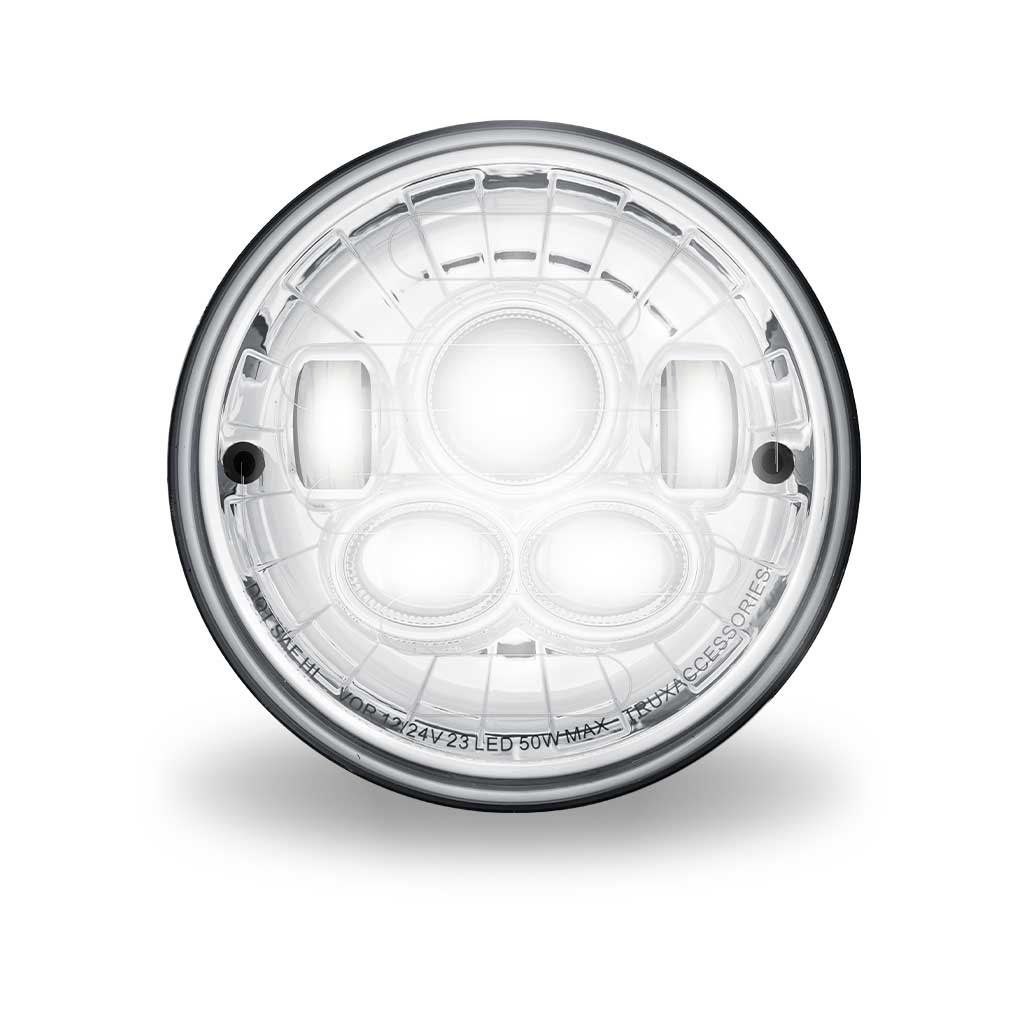

Name: 7″ Heated LED Projector Headlight – Combination High &amp; Low Beam | 6200 Lumens
Brand: Trux
SKU: TLED-H97
Price: 262.50 USD
Availability: InStock

Additional information

Style	Round
Size	7"
Sold	Individually
Compliance	CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type	LED Projector
Function 1	Combination High & Low Beam

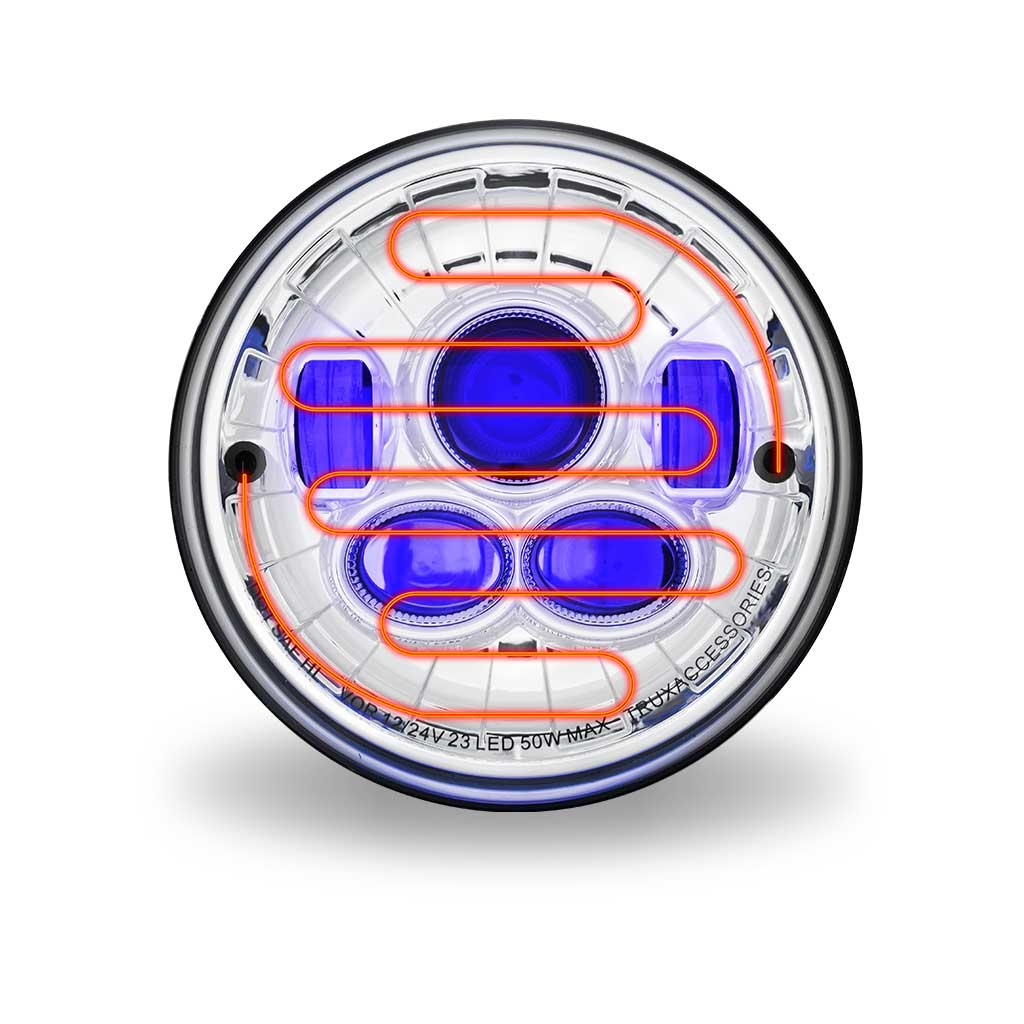

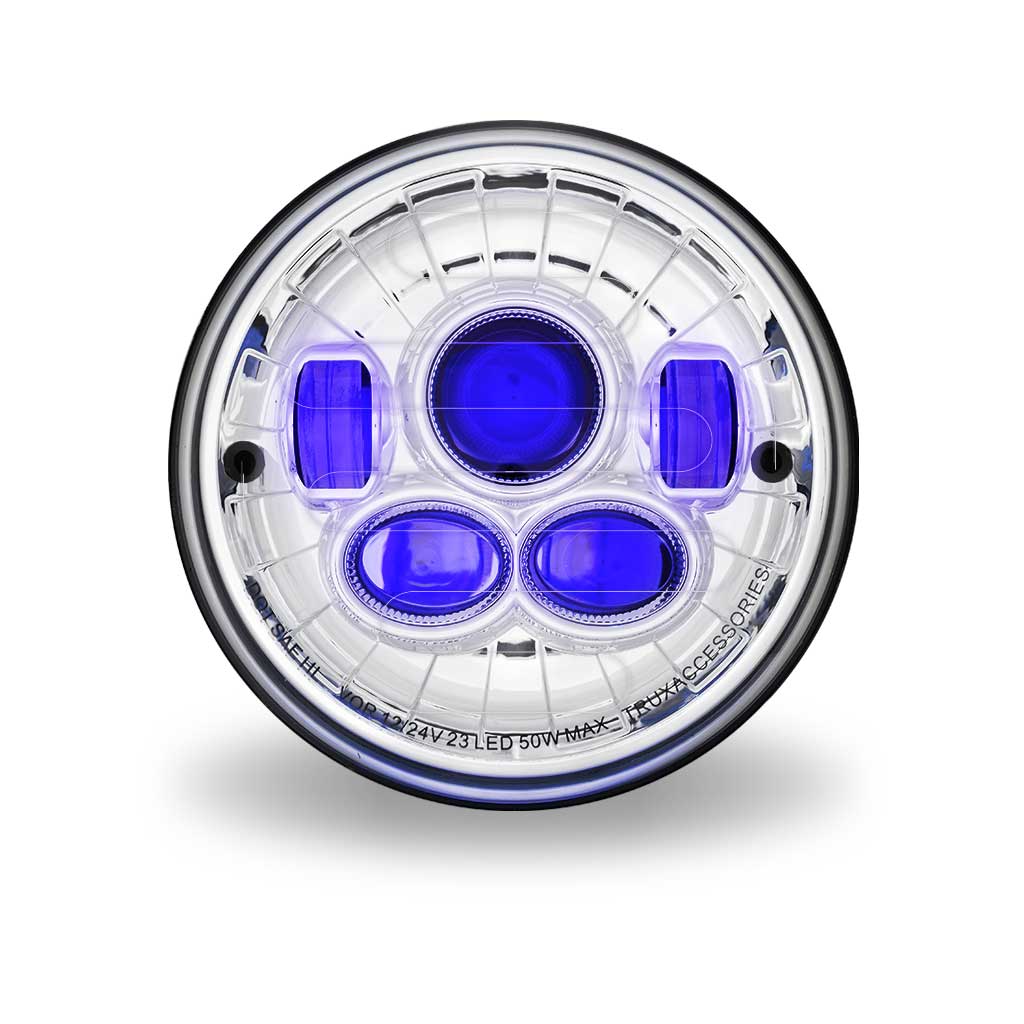

Function 2	Optional Backlit Auxiliary

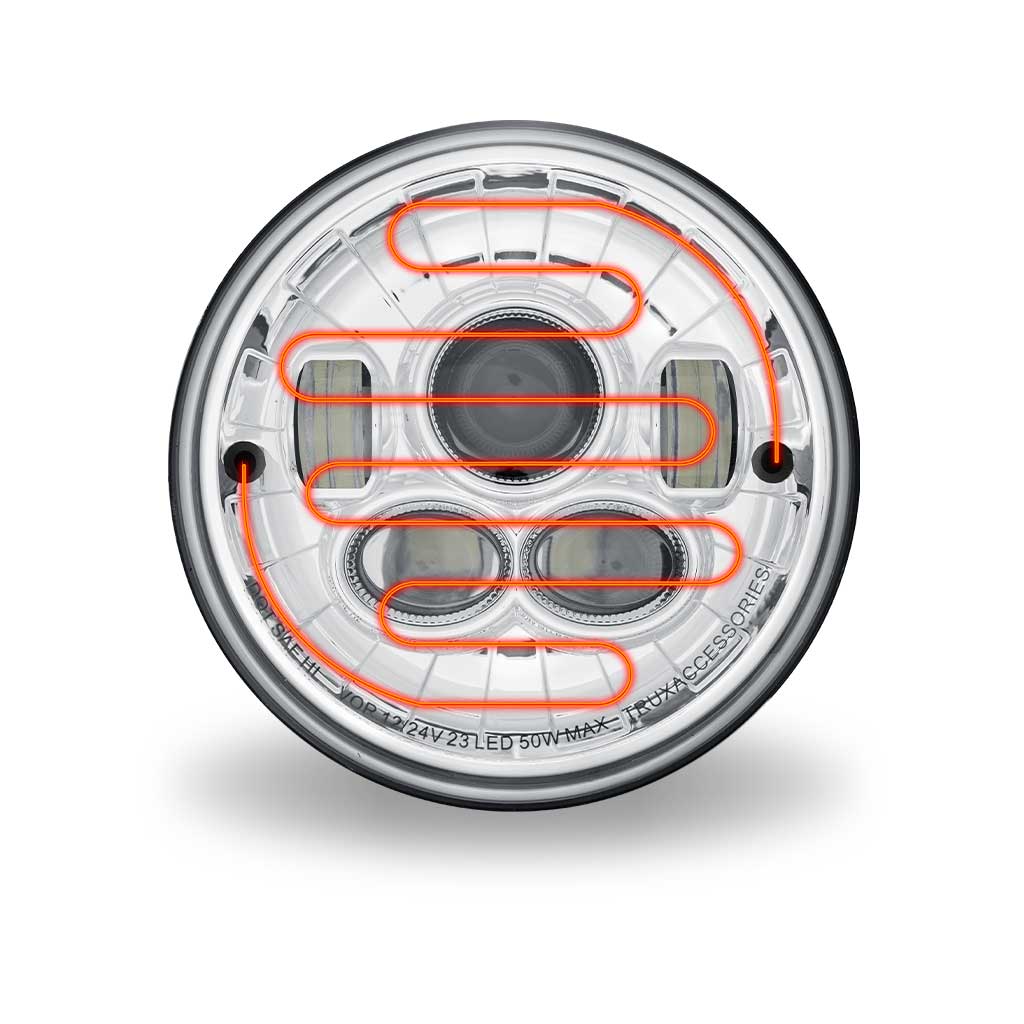

Function 3	Heated Lens
LED Power	Heat Activation High 346, Heat Activation Low 243, High: 21.8 Watts, Low: 11.5 Watts
Raw Lumens	High: 4000 Lumens, Low: 3800 Lumens
Effective Lumens	High: 2400 Lumens, Low: 1100 Lumens
Operating Voltage	9-35 Volts (DRL Compatible)
Function 1 Amperage	High: 1.7 Amps, Low: 0.9 Amps
Function 2 Amperage	0.03 Amps
Function 3 Amperage	Heat Activation: 1 Amp
Diodes	Blue Backlit: 3 Diodes, High: 5 Diodes, Low: 3 Diodes
Interior Color	Chrome
Lens Color	Clear
Lens Material	Polycarbonate
Color Temperature	5500-6500 Kelvin
Housing Material	Aluminum Alloy
Waterproof Rating	IP67 Rating

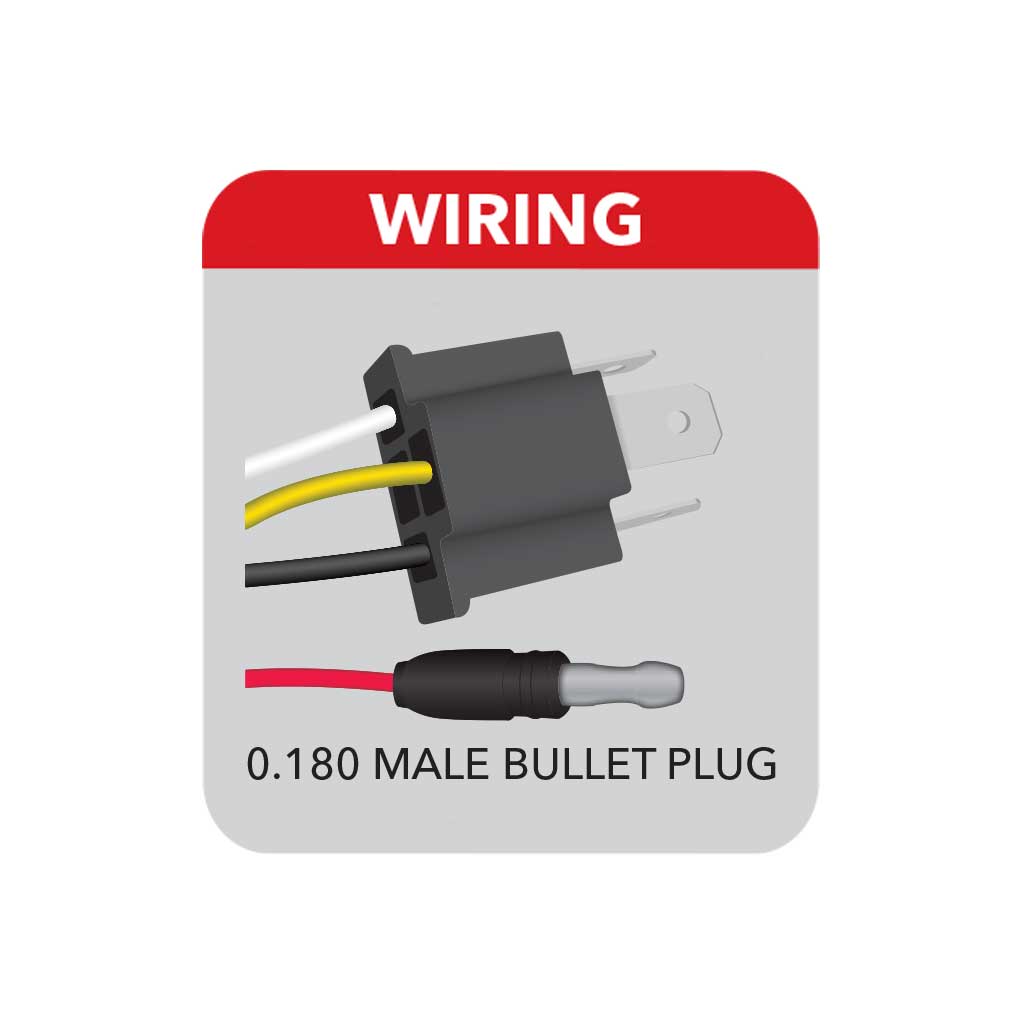

What's Included	Headlight Conversion Plug

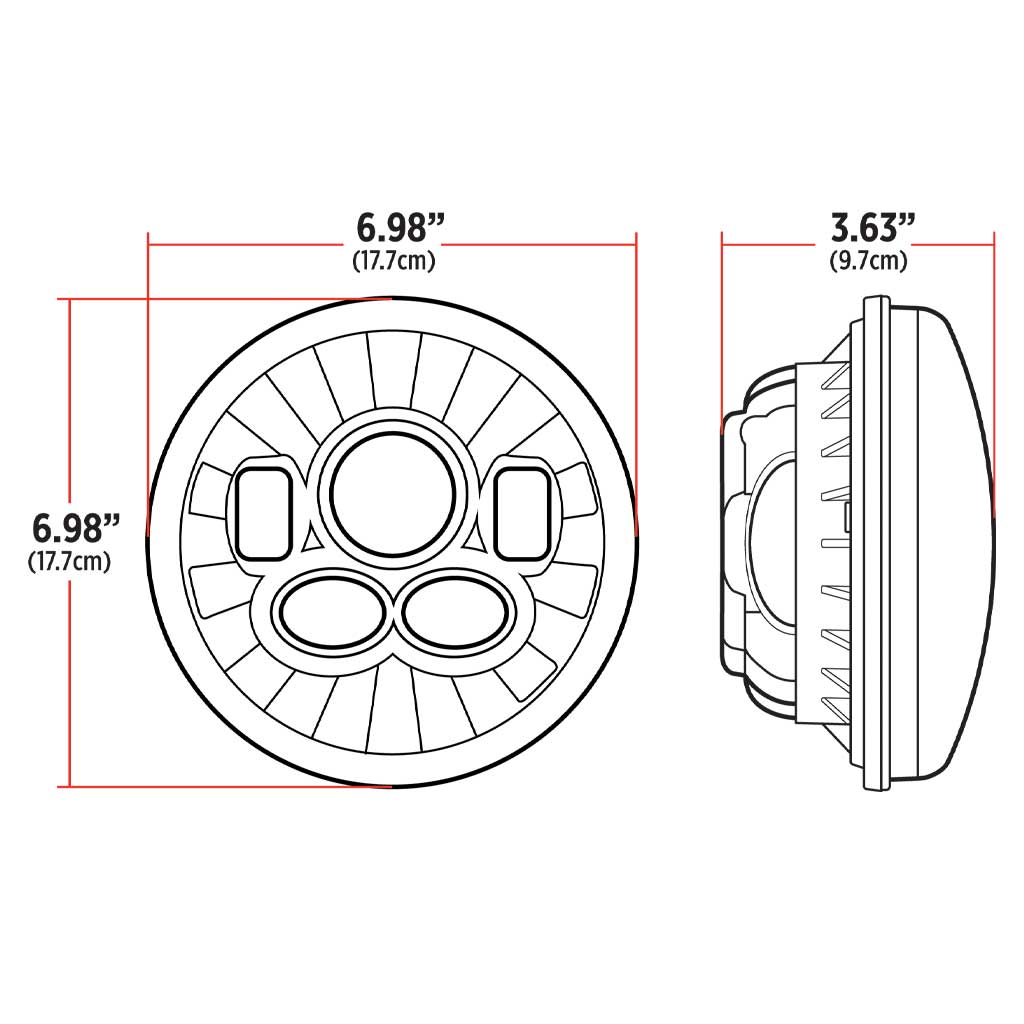

Product Dimensions	6.98" x 3.63" x 6.98"
Package Dimensions	7"L x 4.2"W x 7.46"H
Warranty	4 Year Warranty
