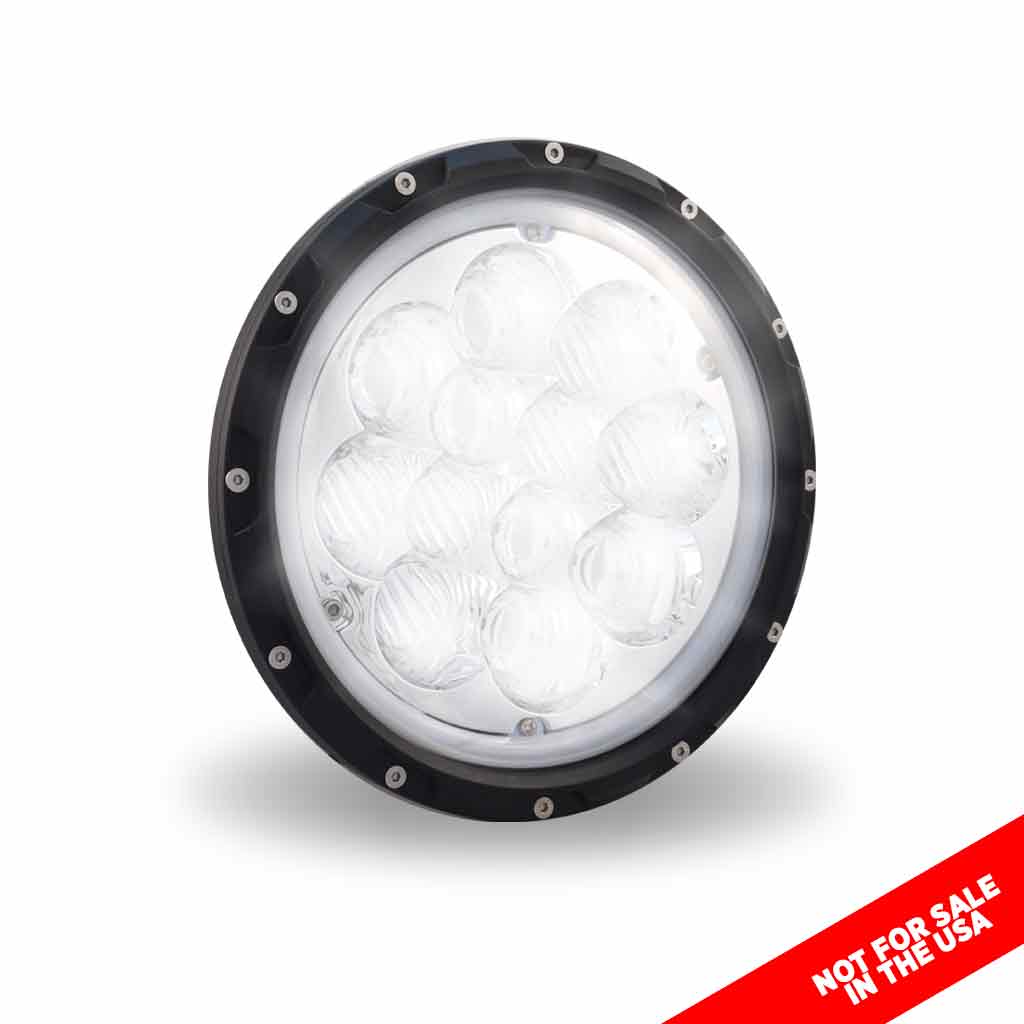

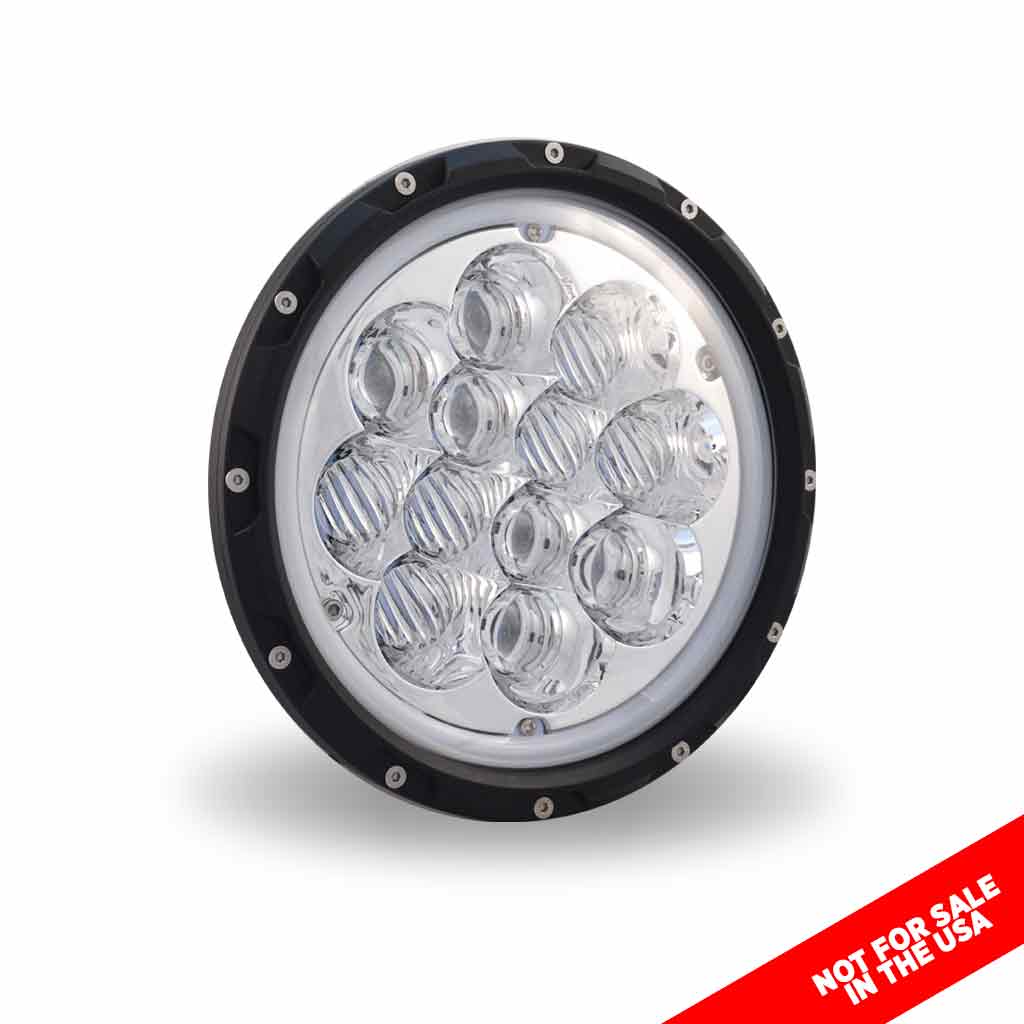

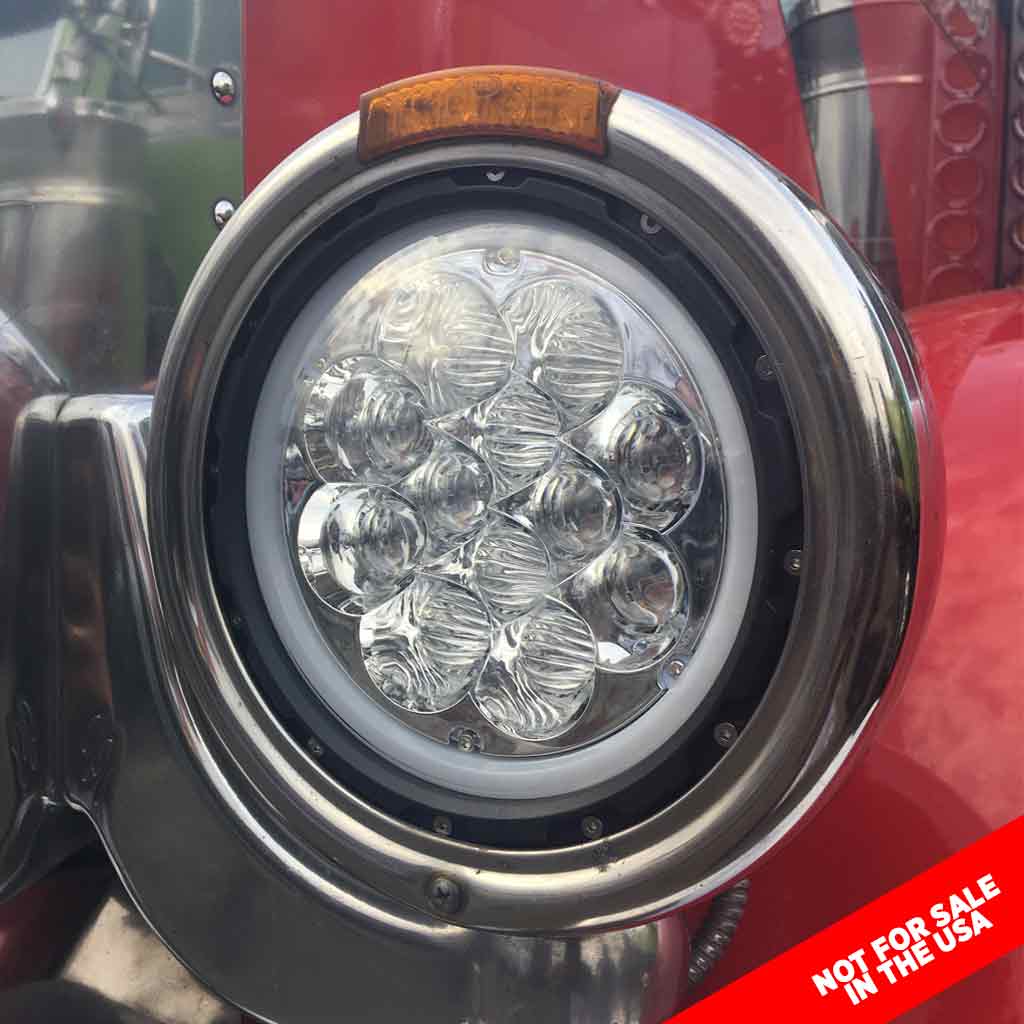

Name: 7″ Off Road LED Headlight – Combination High &amp; Low Beam | 6000 Lumens
Brand: Trux
SKU: TLED-H51
Price: 104.99 USD
Availability: InStock

Description

INSTALLATION:

Please refer to Installation PDF/Video

VIEW/DOWNLOAD:

TLED-H51 Technical Data Headlight Troubleshooting Guide

TRUX RESOURCES:

Trux LED Lighting Solutions Catalog Warranty Policy

Additional information

Style	Round
Size	7"
Sold	Individually
Compliance	No
Bulb Type	LED

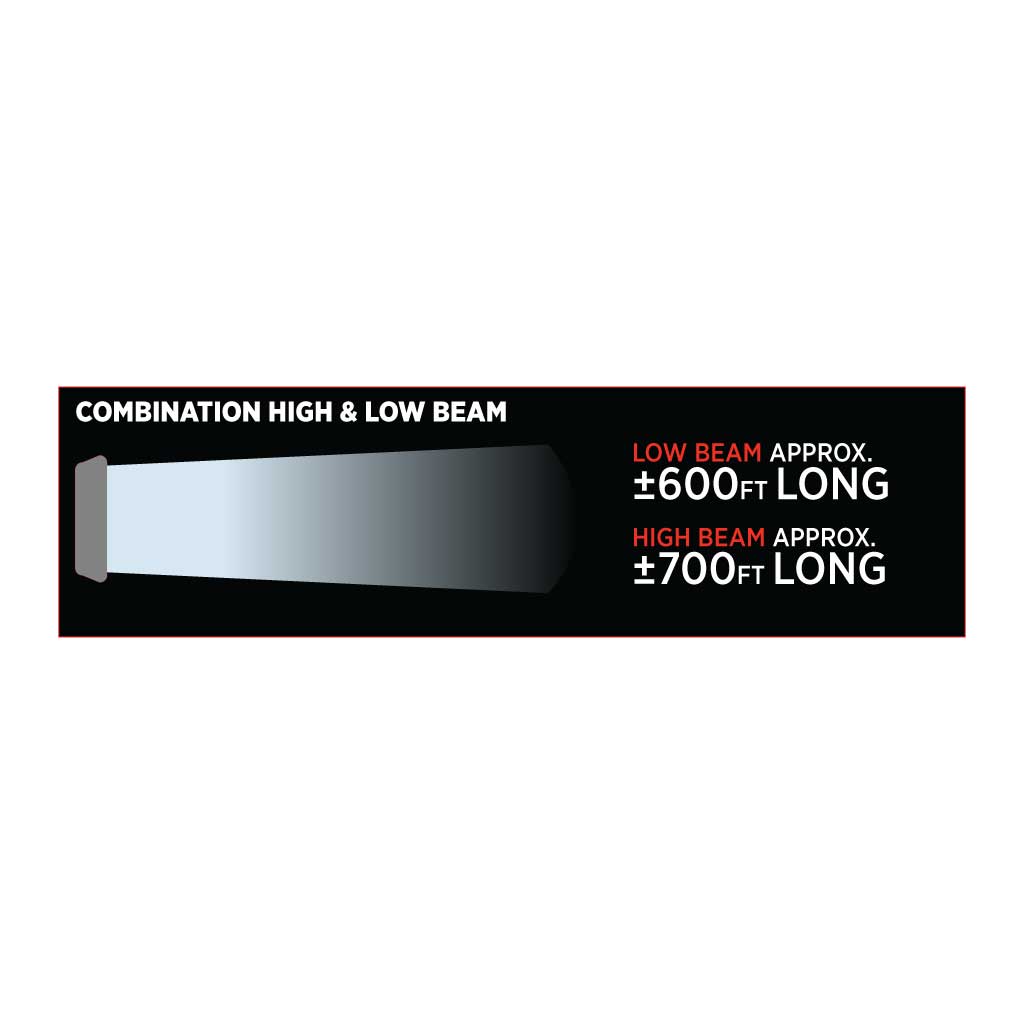

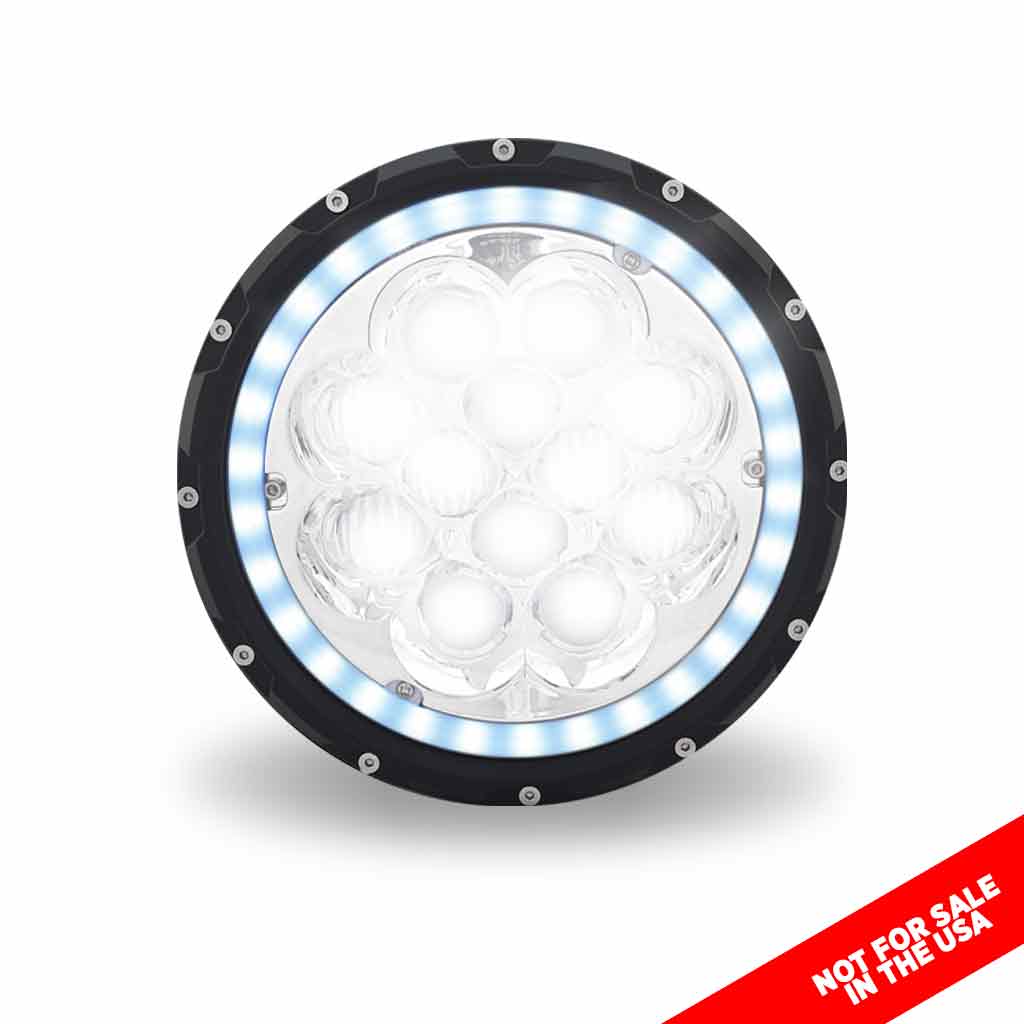

Function 1	Combination High & Low Beam

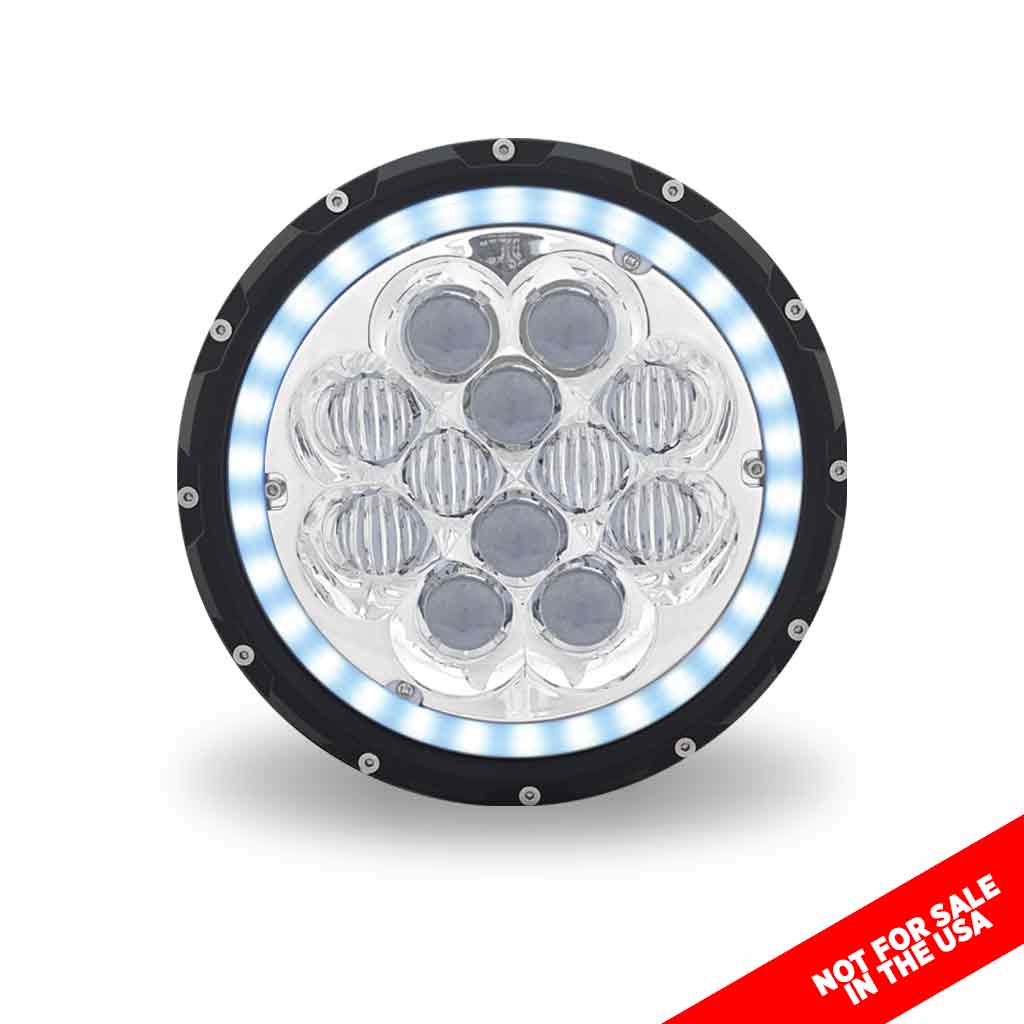

Function 2	Auxiliary Halo Ring
LED Power	High: 60 Watts, Low: 30 Watts
Raw Lumens	High: 6000 Lumens, Low: 3000 Lumens
Effective Lumens	High: 3000 Lumens, Low: 1470 Lumens
Operating Voltage	9-32 Volts
Current Draw @ 12 Volts	High: 3.5 Amps, Low: 1.75 Amps
Diodes	12 Diodes
Interior Color	Chrome
Lens Color	Clear
Lens Material	Polycarbonate
Color Temperature	6000K

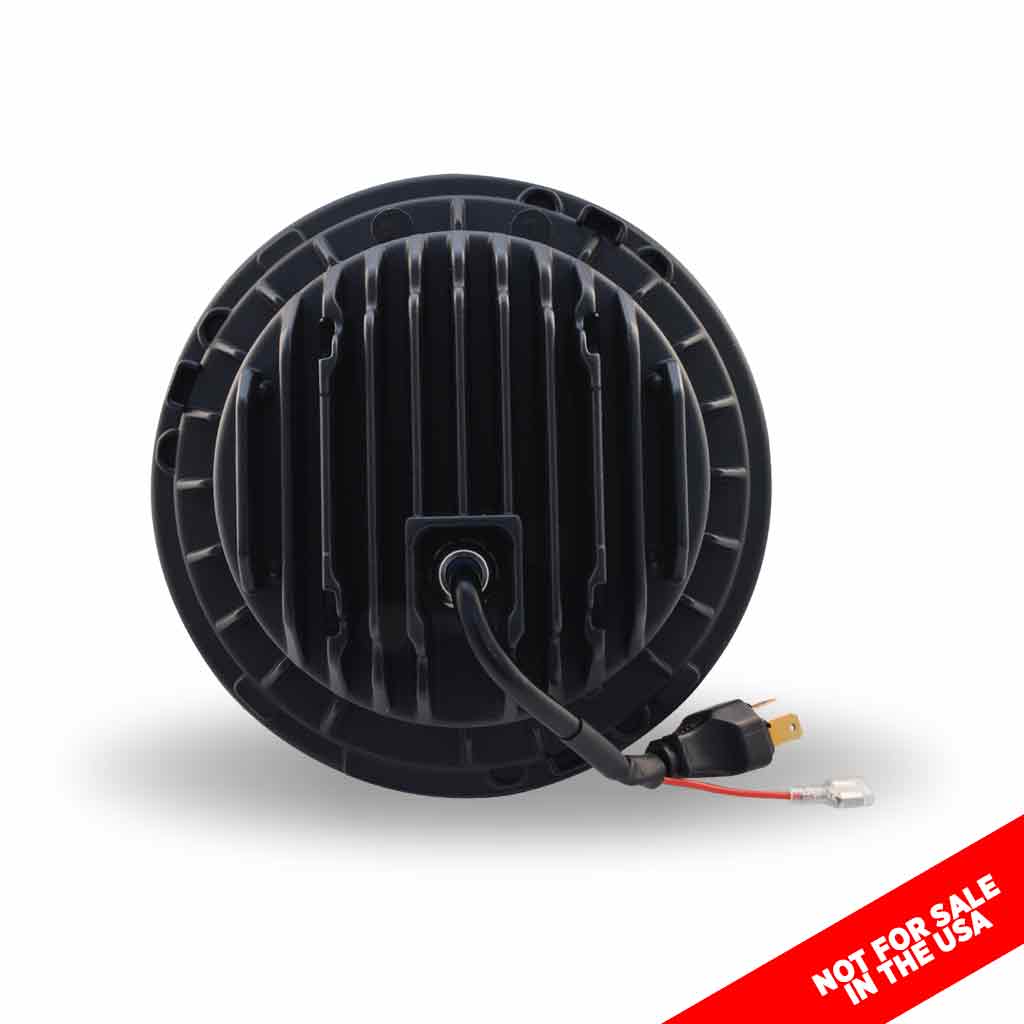

Housing Material	Aluminum Die Cast
Waterproof Rating	IP67 Rating
Product Dimensions	7"L x 3.43"W x 7"H
Package Dimensions	7.5"L x 4.5"W x 7.5"H
Inner Box QTY	1 PC
Warranty	1 Year Warranty
