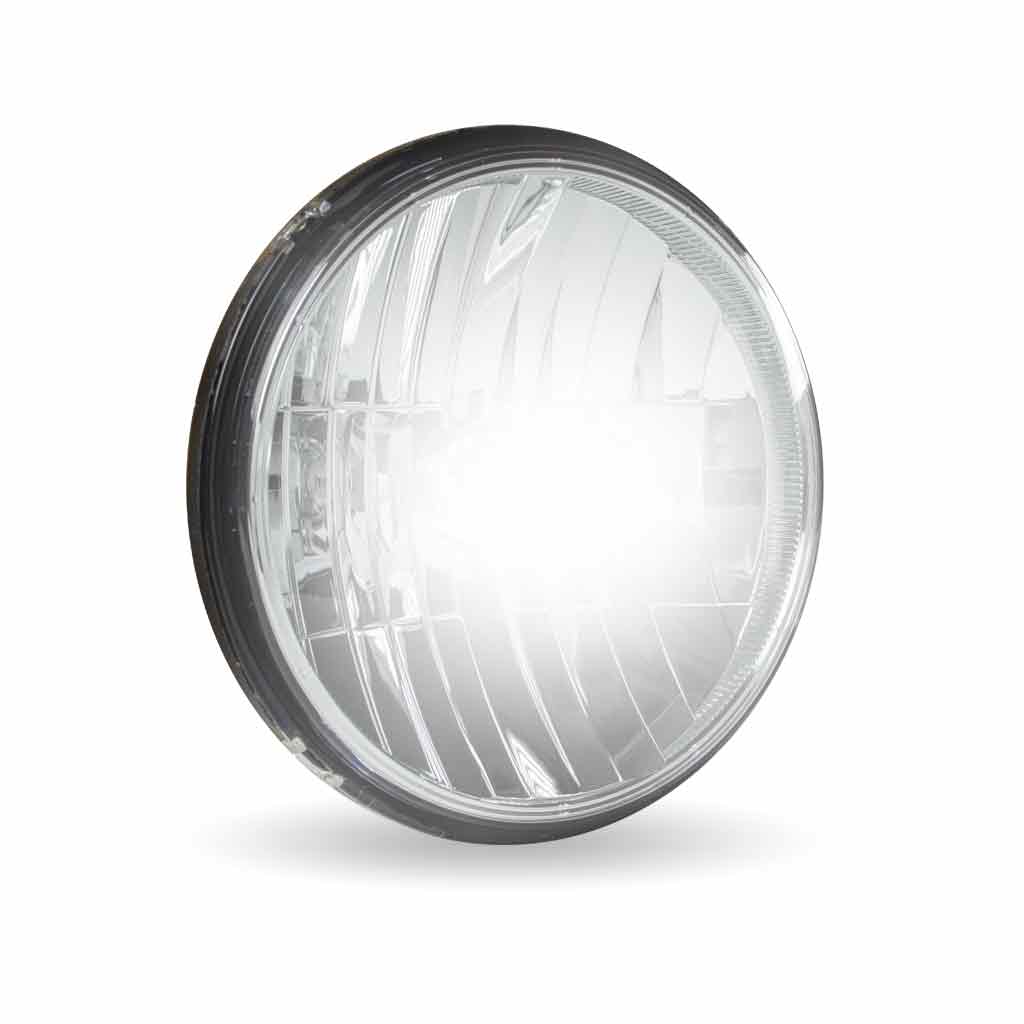

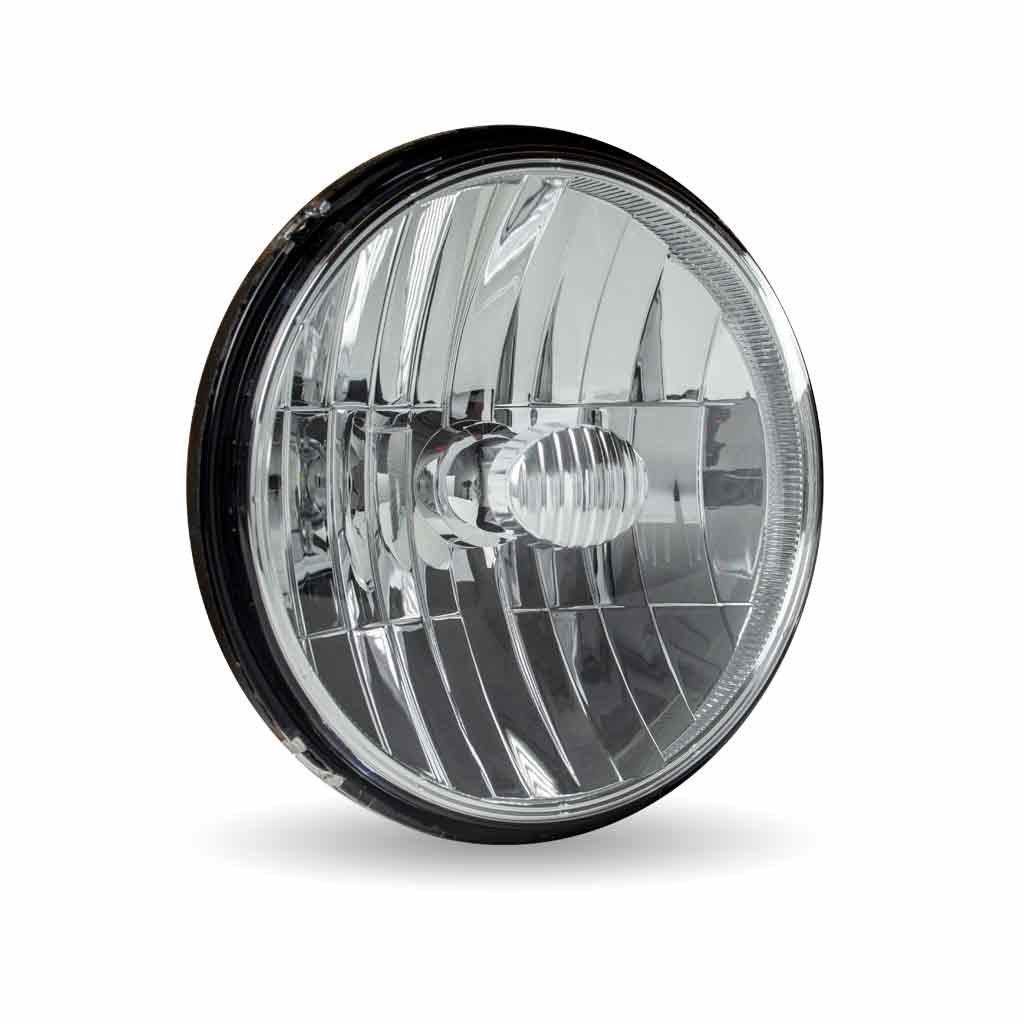

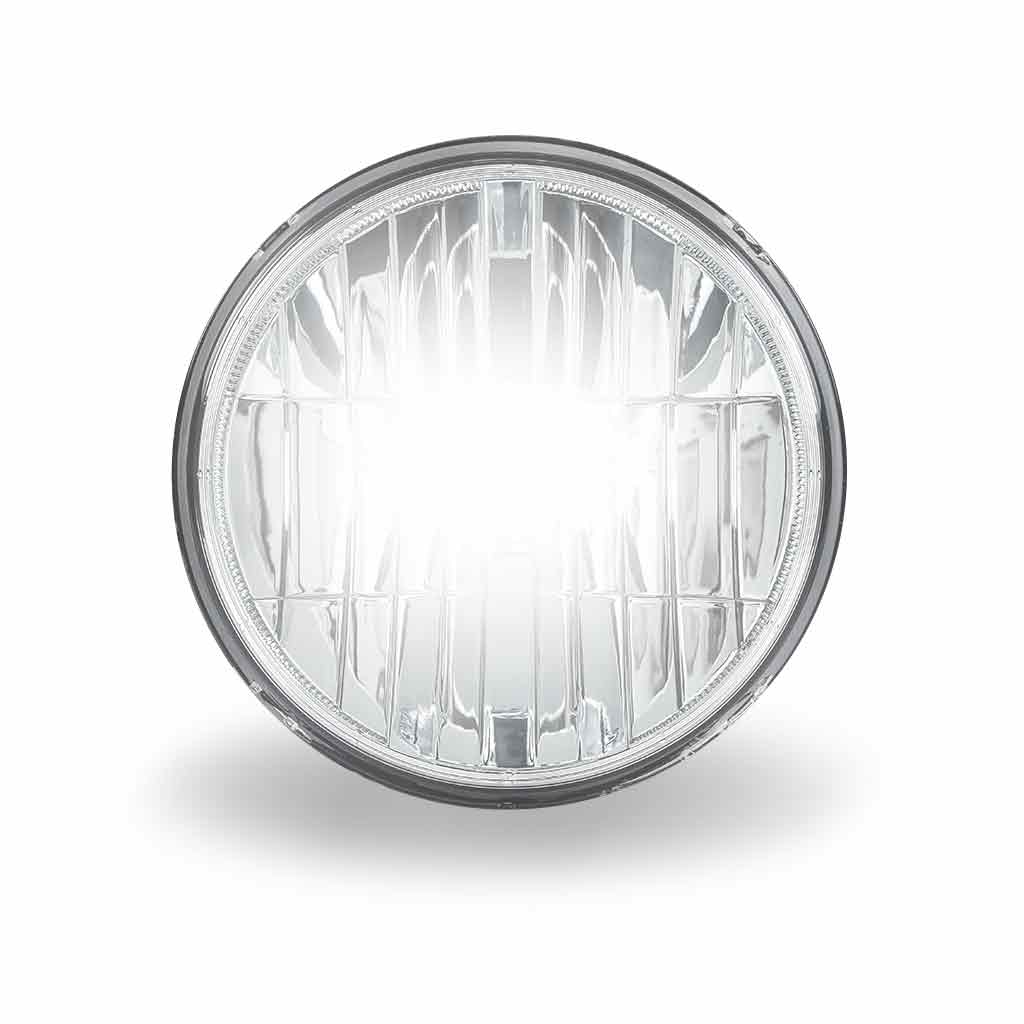

Name: 7″ LED Reflector Headlight – Combination High &amp; Low Beam | 2700 Lumens
Brand: Trux
SKU: TLED-H77
Price: 253.75 USD
Availability: InStock

Description

INSTALLATION:

Please refer to Installation PDF/Video

VIEW/DOWNLOAD:

TLED-H77 Technical Data

Headlight Troubleshooting Guide

TRUX RESOURCES:

Trux LED Lighting Solutions Catalog

Warranty Policy

Additional information

Weight	1.77 lbs
Dimensions	4.35 × 7.3 × 7.65 in
Style	Round
Size	7"
Sold	Individually
Compliance	CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type	LED Reflector

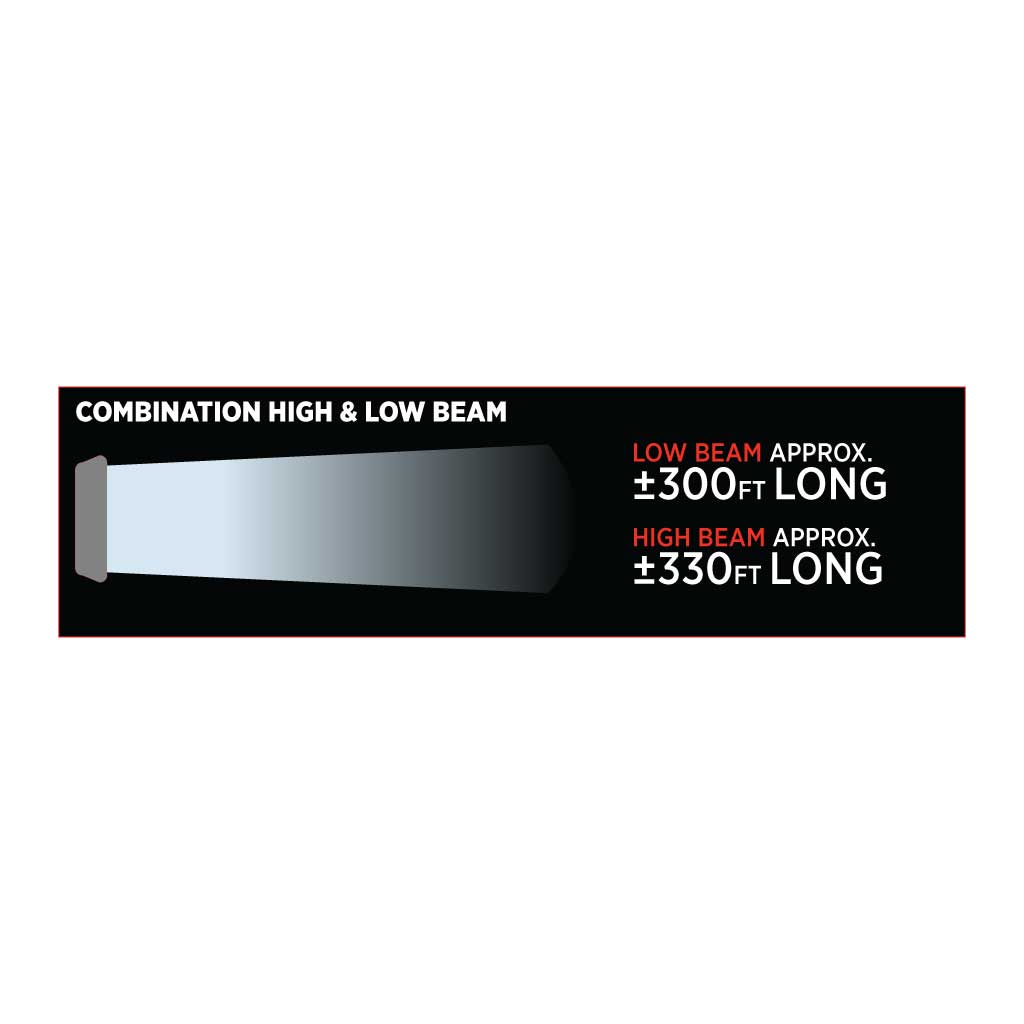

Function	Combination High & Low Beam
LED Power	High: 16 Watts, Low: 10 Watts
Raw Lumens	High: 2700 Lumens, Low: 2700 Lumens
Effective Lumens	High: 900 Lumens, Low: 750 Lumens
Operating Voltage	9-24 Volts (DRL Compatible)
Diodes	4 Diodes
Interior Color	Chrome
Lens Color	Clear
Lens Material	Polycarbonate
Color Temperature	6000K
Housing Material	Aluminum Alloy
Waterproof Rating	IP67 Rating

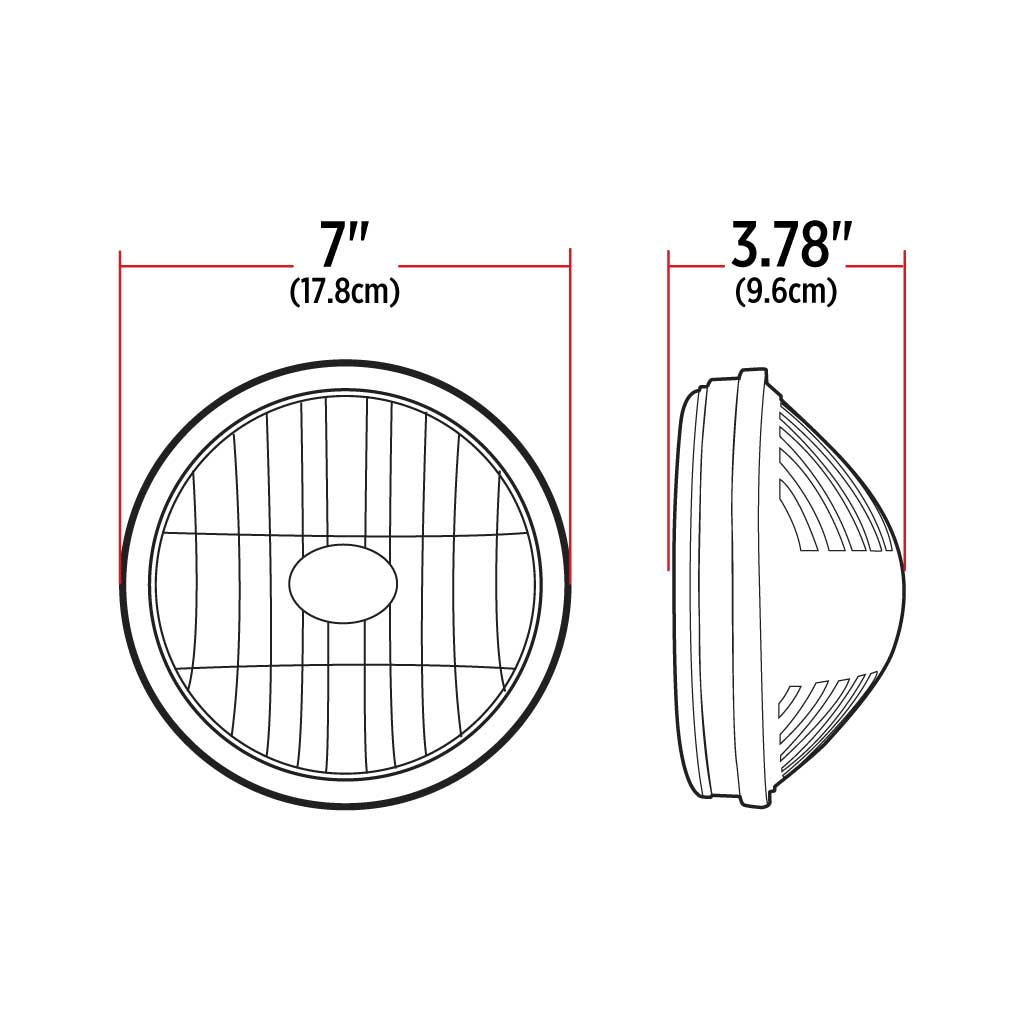

Product Dimensions	7"L x 3.7"W x 7"H
Package Dimensions	4.8"L x 7.3"W x 7.3"H
Package Weight	1.8 LBS
Inner Box QTY	1 PC
Outer Box Qty	20 PCS
Warranty	4 Year Warranty
Current Draw @ 12.8 Volts	High: 1.25 Amps, Low: 0.78 Amps
